Machined Products

One of the advantages of working with Spinco Metal Products, Inc. is our decades of experience in brass component manufacturing. We have both the manufacturing and assembly arms of our business under one roof, which allows us to offer the widest range of products. We have been helping customers reduce components and simplify their designs for years. Regardless of the complexity of your assemblies, we are the team for you!

We Aim To Help You:

  • Increase quality control and improve material costs
  • Reduce your supplier base and improve material control
  • Reduce your labor and increase manufacturing space

Bi-Flow Distributors

Bi-Flow Distributors

We offer two basic styles of “piston type” flow metering devices, (“Bi-Flow Distributors”) as shown.

A popular method of eliminating costly “expansion valves,” difficult to control “Capillary Tubing” and sometimes leaky check valves, this device contains a precision-machined “Orifice Piston.” This piston strictly regulates flow in one direction, while allowing relatively open flow in the opposite direction.

When two of these units are installed back to back between the condenser and evaporator, with the proper size pistons, they provide performance and control in a heat pump unit.

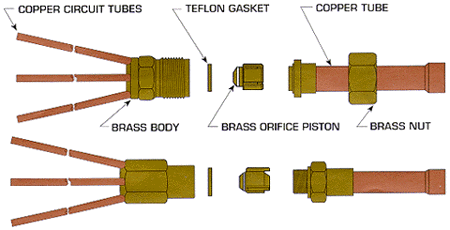

Diagram of Bi-Flow distributors - 1

We offer a wide range of variations of this product. The connections may be produced in any size and configuration you may require. The circuit tubing may also be provided in the size, shape, and quantity you need to fit your application.

These units may also be purchased at any stage of completion. We can provide a unit complete with piston, torqued to specification and ready to install into your unit, or you may purchase any of these components separately.

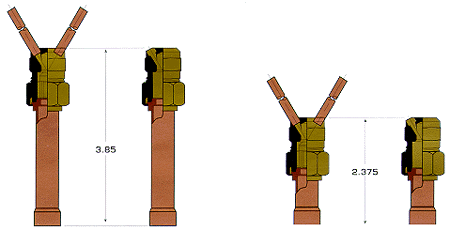

Diagram of Bi-FLow Distributors - 2

Shown above are two examples of our most popular Bi-Flow Distributors. A full assembly consists of a distributor body, distributor tubes, an orifice piston, a nut, a Teflon gasket and an end piece. As a full assembly, the nut is torqued to 20 ft/lbs and is ready to install into your unit. These distributors can be manufactured with copper tubing of various O.D.’s and lengths. The copper tubing can be expanded on the ends to fit your connection dimensions. Custom designs are welcomed.

Below is the nomenclature to assist you in selecting the Spinco part number that suits your application. Contact our sales department at 315-331-6285 and our representatives will gladly assist you.

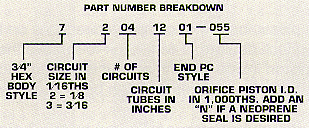

Diagram of Bi-Flow Distributors - Part Numbers
  • To order the above assembly, less the orifice piston, simply drop the -055.
    • (The unit will be shipped un-assembled unless it is requested to be assembled).
  • To omit any other part of the unit, simply replace the appropriate digit(s) with zero(s)
    • Ex: 7204000 is a Bi-Flow distributor body ONLY, with four circuit holes, for 1/8 tubing.

To order this same distributor with 12 long circuit tubes installed, the part number is; 72041200.

  • Nut Only = 75-01
  • Gasket Only = P900033-1
  • End Piece Only = 75EPXX
  • 75EP001 = 3/8 Tube, 2 5/8 long, one end expanded to 3/8 I.D.
  • 75EP002 = 3/8 Straight Tube, 1 1/8 long
  • 75EP003 = 1/2 Straight Tube, 1 13/16 long
  • 75EP004 = 1/2 Tube, 2 1/2 long, one end expanded to 1/2 I.D.
  • 75EP005 = 3/8 Tube, 1 1/8 long, one end expanded to 3/8 I.D.

Orifice Pistons and Piston Kits

Piston kits are provided so that the customer may change the piston in the field, in order to optimize the unit. The piston is sealed in a plastic bag, with complete directions on how to extract the existing piston and install the new one. Also included are a wire hook to remove the existing piston, a new gasket and a label to identify the size piston inside the unit once it is sealed back up. The pistons come in two basic body styles and can be provided with either Teflon or neoprene seals.

“Fluted” Piston with Teflon Seal

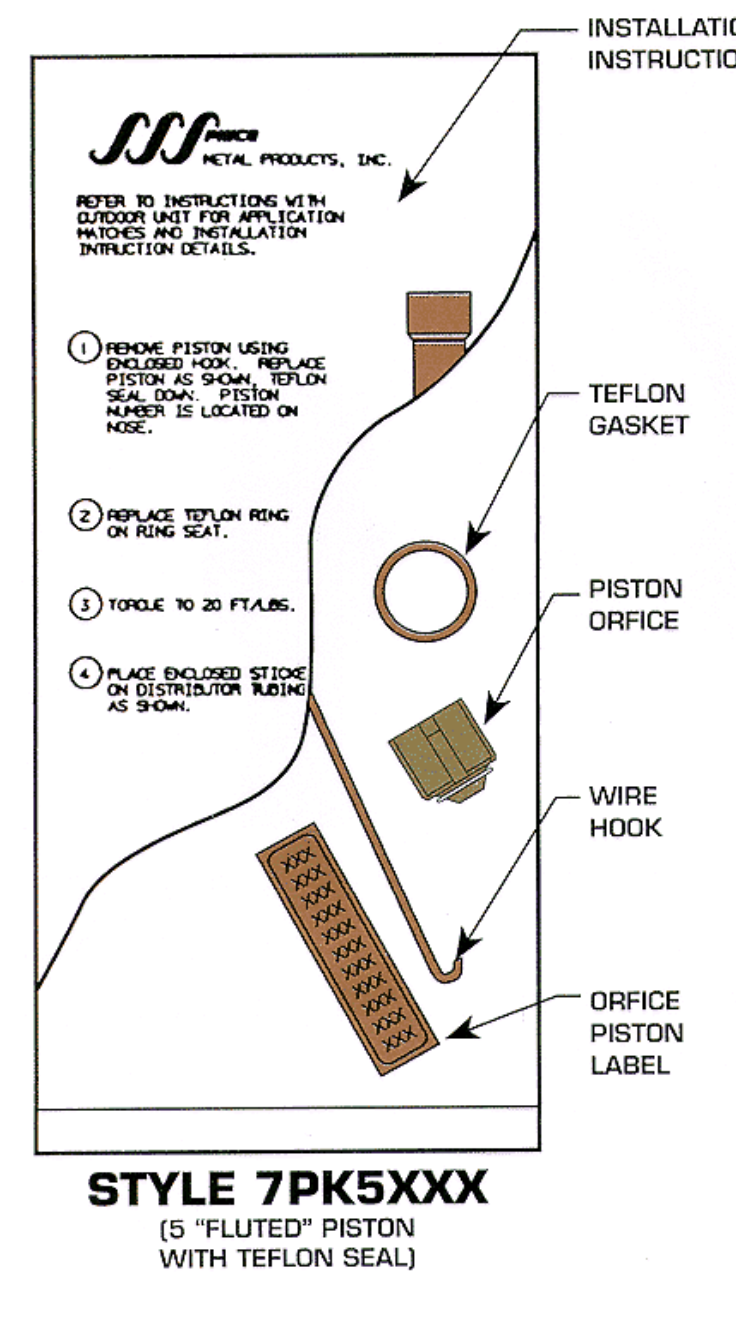

Diagram of "Fluted" Piston with Teflon Seal with text

“Fluted” Piston – Style 7PK5XXX

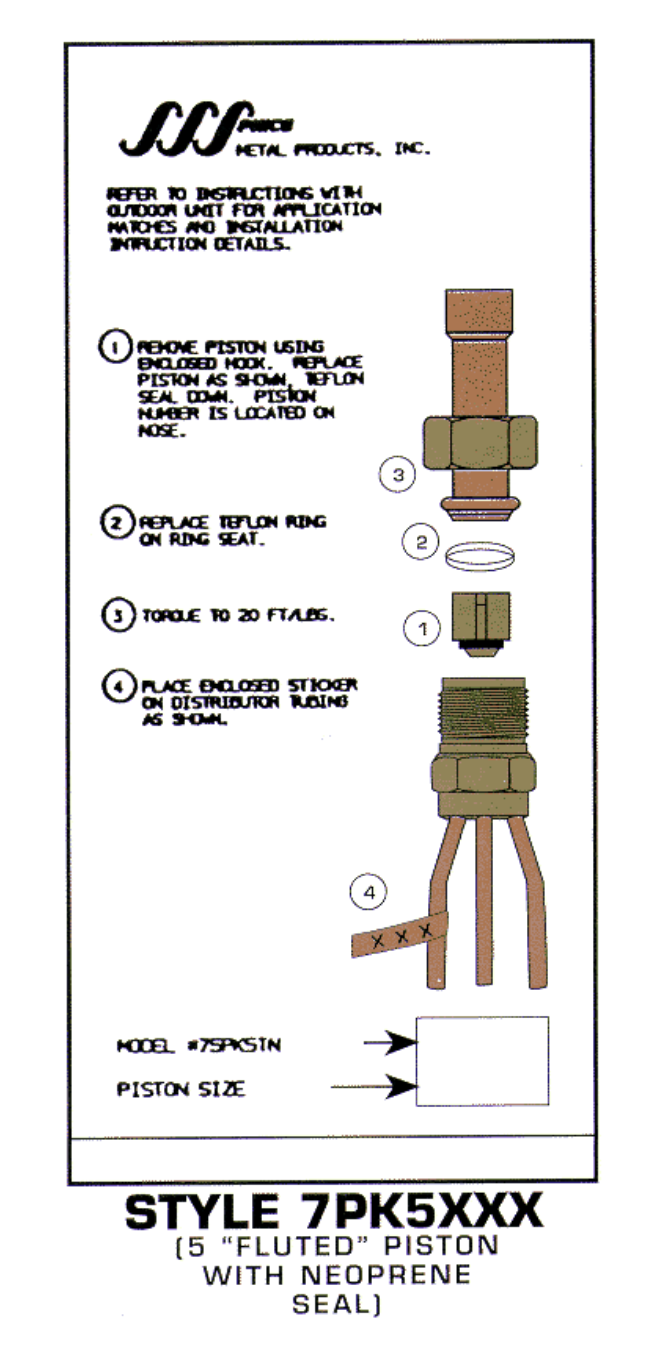

Diagram of "Fluted" Piston - Style 7PK5XXX with design

“Fluted” Piston – Style 3PKXXX

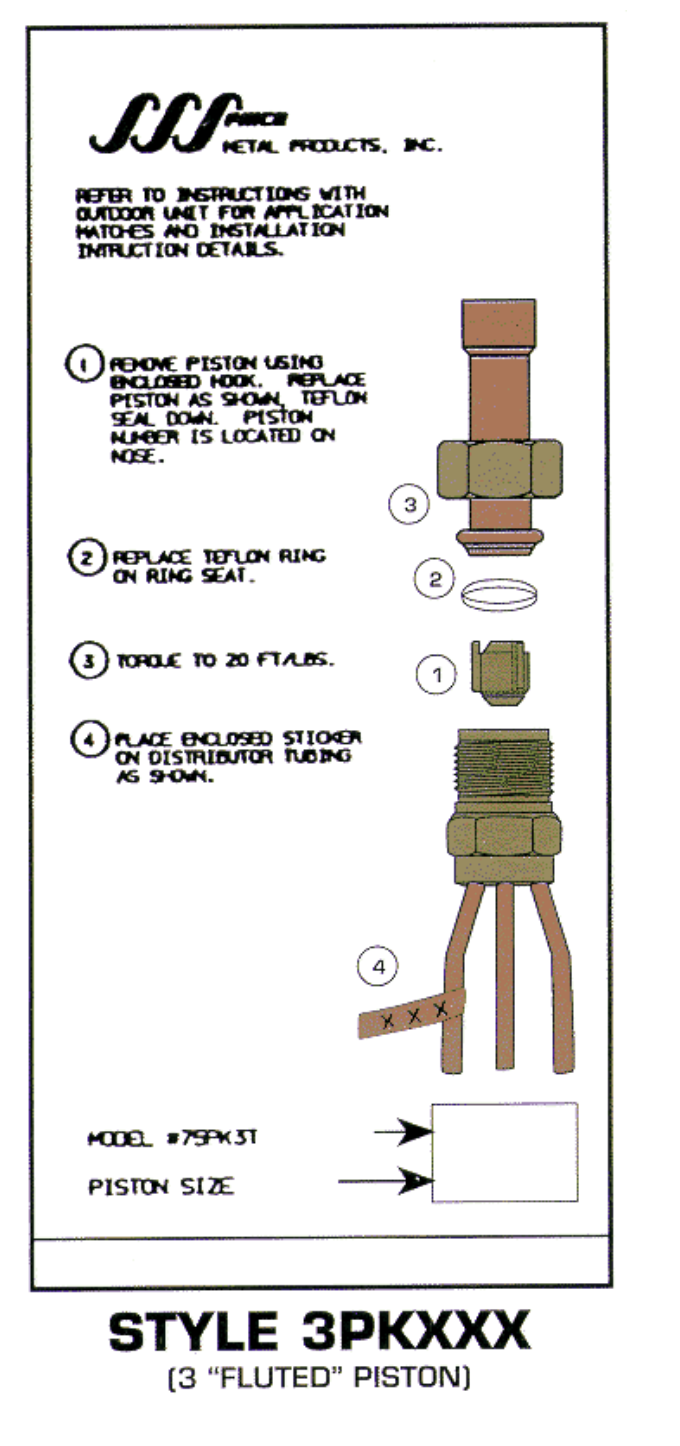

Diagram of "Fluted" Piston - Style 3PKXXX with text

Orifice Pistons

Pistons may also be purchased separately, (as may all other components of a Bi-Flow Distributor Assembly). When shipped separately, they are packaged in plastic protective tubes as shown below. No special instructions are needed. Simply order the size orifice piston you require.

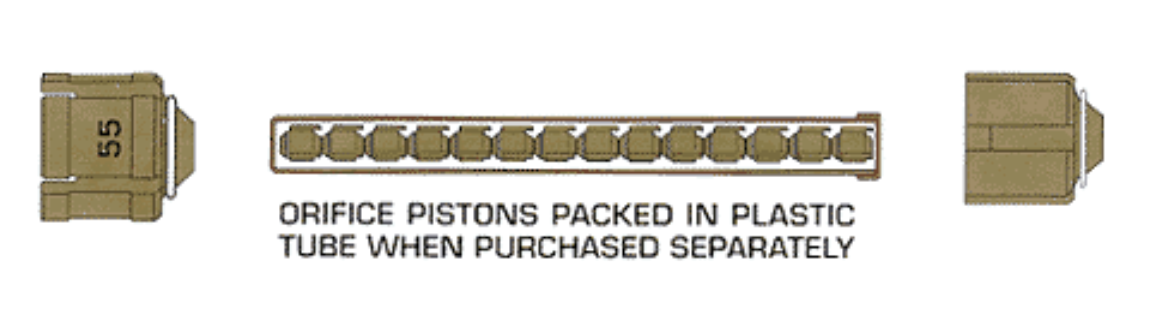

Orifice Pistons Packed in Plastic Tube When Purchased Separatley

Brass Refrigerant Distributor

Refrigerant Distributors

Refrigerant distributors consist of two basic designs, the “Orifice Type” and the “Low Pressure Type”. Spinco Metal Products manufactures both types in a wide range of variations. The “Orifice Type” may have a permanent or a replaceable nozzle, depending on the body style selected. The nozzle mixes the two-phase fluid and regulates the flow of fluid through the orifice, into the circuit passages and on to the coil. Various nozzles can be selected for the proper loads required as determined by the chart below. This allows the use of one body type for several applications.

The “Low Pressure Type” has a radius on the inlet of the “throat.” The fluid flows through the radius and throat, into diverging circuit holes and on to the coil. The radius versus the flat orifice face results in the lower pressure drop across this style distributor. The throat diameter is sized according to the number and size of circuits required and cannot be altered in the field.

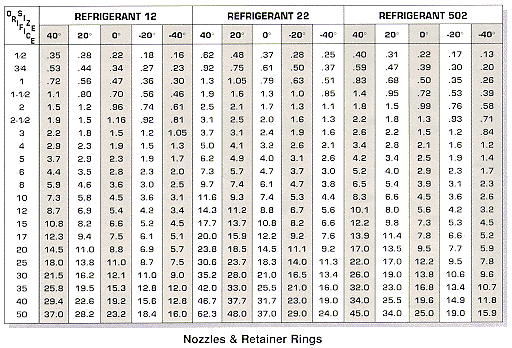

Diagram of different Nozzles & Retainer Rings and their diameter

Nozzles and retainer rings can be purchased separately. The sizes of the orifice and nozzle body are required. Use the chart below to reference the necessary information. Optional threaded holes are available upon request.



Tapped holes available upon request. These holes do not alter the function of the nozzle and are seldom used.

Nozzle – Type Distributors

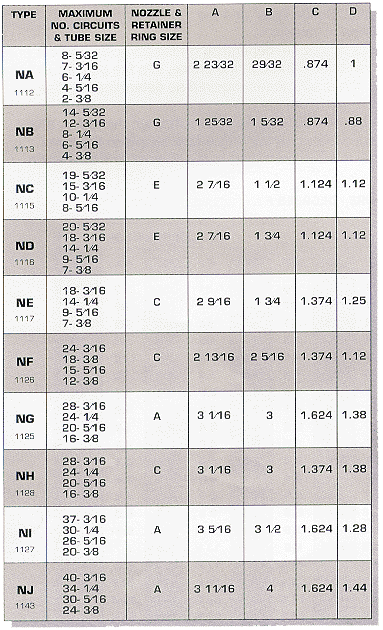

Nozzle - Type Distributors Chart 1

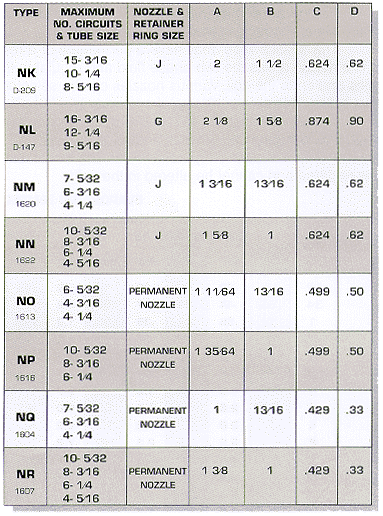

Nozzle - Type Distributors Chart 2
Nozzle - Type Distributors

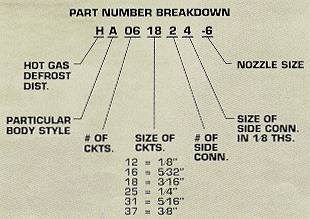

Nozzle - Type Distributors Part Number Breakdown

Nozzle – Type Distributors With Flare

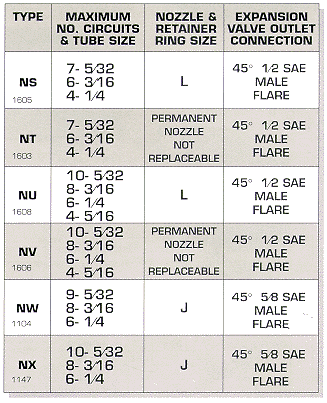

Nozzle - Type Distributors With Flare Chart
Nozzle - Type Distributors With Flare 1
Nozzle - Type Distributors With Flare 2
Nozzle - Type Distributors With Flare 5
Nozzle - Type Distributors With Flare 2
Nozzle - Type Distributors With Flare 3
Nozzle - Type Distributors With Flare 6

Heat Pump and Hot Gas Defrost Distributors

When ordering Heat Pump and Hot Gas Distributors, specify number and size of side connections

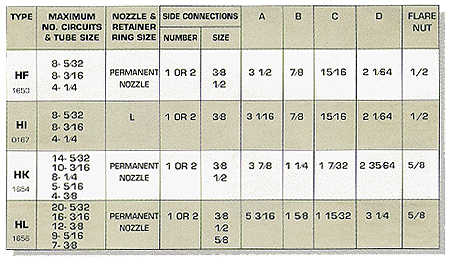

Heat Pump and Hot Gas Defrost Distributors Chart
Heat Pump and Hot Gas Defrost Distributors
Heat Pump and Hot Gas Defrost Distributors 2

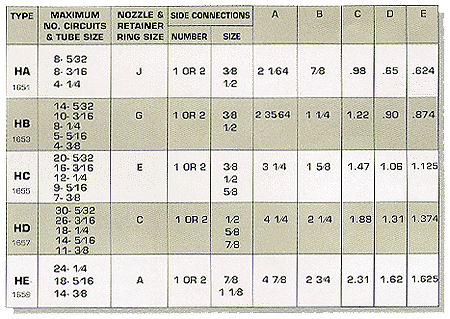

Heat Pump and Hot Gas Defrost Distributors Chart 2
Heat Pump and Hot Gas Defrost Distributors Part Numbers

Flare – Type Low Pressure Drop Distributors

To order distributors without a flare tube or nut use “0F”, (zero F), as shown. The neck diameter will be supplied to fit inside an unexpanded tube.

Flare - Type Low Pressure Drop Distributors Nut
Flare - Type Low Pressure Drop Distributors Part
Flare - Type Low Pressure Drop Distributors

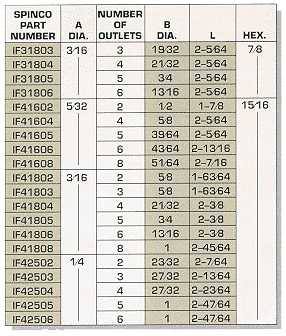

Flare - Type Low Pressure Drop Distributors Chart 1

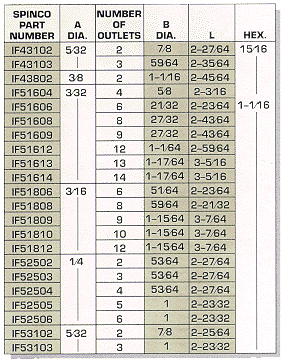

Flare - Type Low Pressure Drop Distributors Chart 2
Flare - Type Low Pressure Drop Distributors Part Numbers

Venturi Style Distributors

Venturi Style Distributors Cross Section
Venturi Style Distributors Part Number

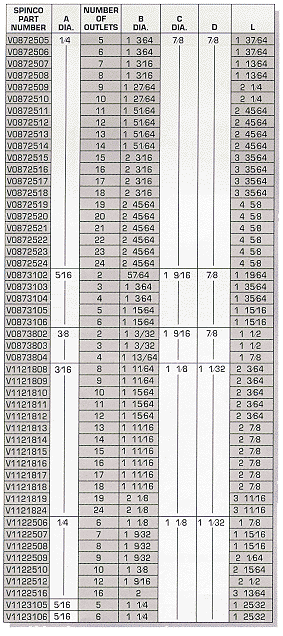

Venturi Style Distributors Chart 1

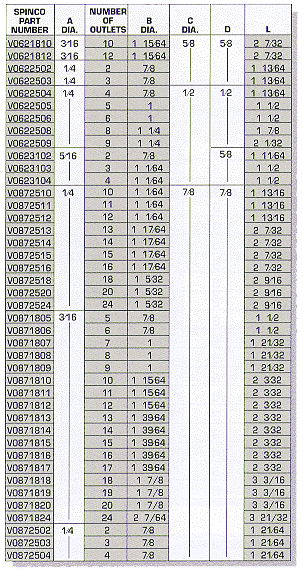

Venturi Style Distributors Chart 2

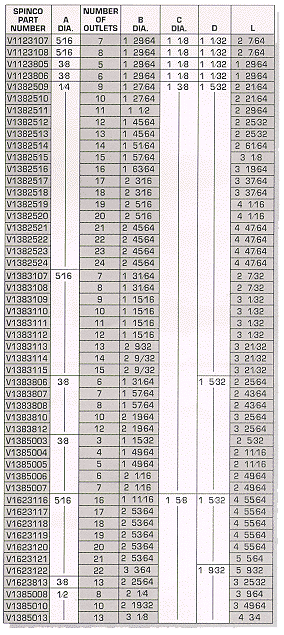

Venturi Style Distributors Chart 3

Male Swivel Nut Tube-O-Type

Male Swivel Nut Tube-O-Type Illustration

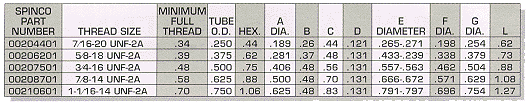

Male Swivel Nut Tube-O-Type Chart

Female Fitting Tube-O-Type

Female Fitting Tube-O-Type Illustration

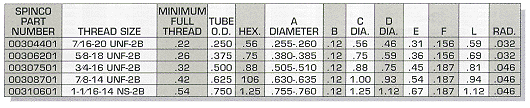

Female Fitting Tube-O-Type Chart

Male Inverted Swivel Nut Tube-O-Type

Male Inverted Swivel Nut Tube-O-Type Illustration

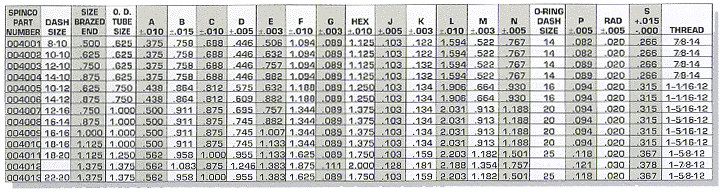

Male Inverted Swivel Nut Tube-O-Type Chart

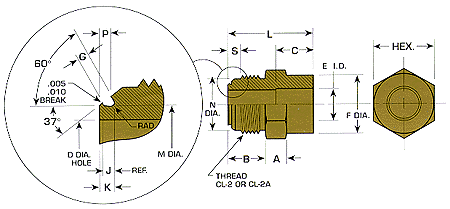

Male Inverted Swivel Nut Tube-O-Type

Male Inverted Swivel Nut Tube-O-Type

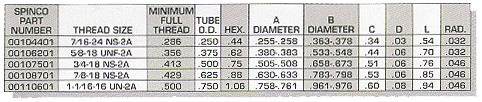

Male Inverted Swivel Nut Tube-O-Type Chart

Variations of Length & Tube Connections Available
